printed circuit boards Products
.jpeg){kind=spacer}
Multilayer PCB
Up to 64 Layers FR4 TG135/TG150/TG170 Halogen Free/CTI≥600 Aspect Ratio (Finish Hole) 28:1 Sample Expedited 8 Hours(1-2Layer)
Address:
Phone:8613713911417
Website: https://www.pcbapeak.com/
High Speed PCB
Panasonic Megtron4/6/7 TU-872SLK/Isola-FR408HR,etc Impedance Tolerance ±5%(min) Dimension Accuracy ±0.02mm(min) Line Width/Space Accuracy ±5%
Address:
Phone:8613713911417
Website: https://www.pcbapeak.com/
High Frequency PCB
More than 85+ Types Rogers/Arlon/Taconic/Isola/ Nelco/F4B Serices,etc Materials can be Specified Impedance Tolerance ±5%(min)
Address:
Phone:8613713911417
Website: https://www.pcbapeak.com/
IC Substrate&Substrate-Like PCB
CSP/FC-CSP/SIP/FC-BGA/WB-CSP FR4/BT/High-Speed Material Trace Width/Space 12/12μm SM Registration:±20μm Strict SM Flatness Control ≤5μm
Address:
Phone:8613713911417
Website: https://www.pcbapeak.com/
HDI PCB
Blind/Buried Via 5+N(N+M)+5 Structure Trace Width/Spacing 1.6/1.6mil Laser Hole Size(mm)≥0.075 High Density Interconnector
Address:
Phone:8613713911417
Website: https://www.pcbapeak.com/
Specialty PCB
Ceramic/Glass Material Hybrid Material Lamination Buried Capacitance/Resistance PTH/NPTH Step Slots Uneven/Segmented/Step Gold Finger
Address:
Phone:8613713911417
Website: https://www.pcbapeak.com/

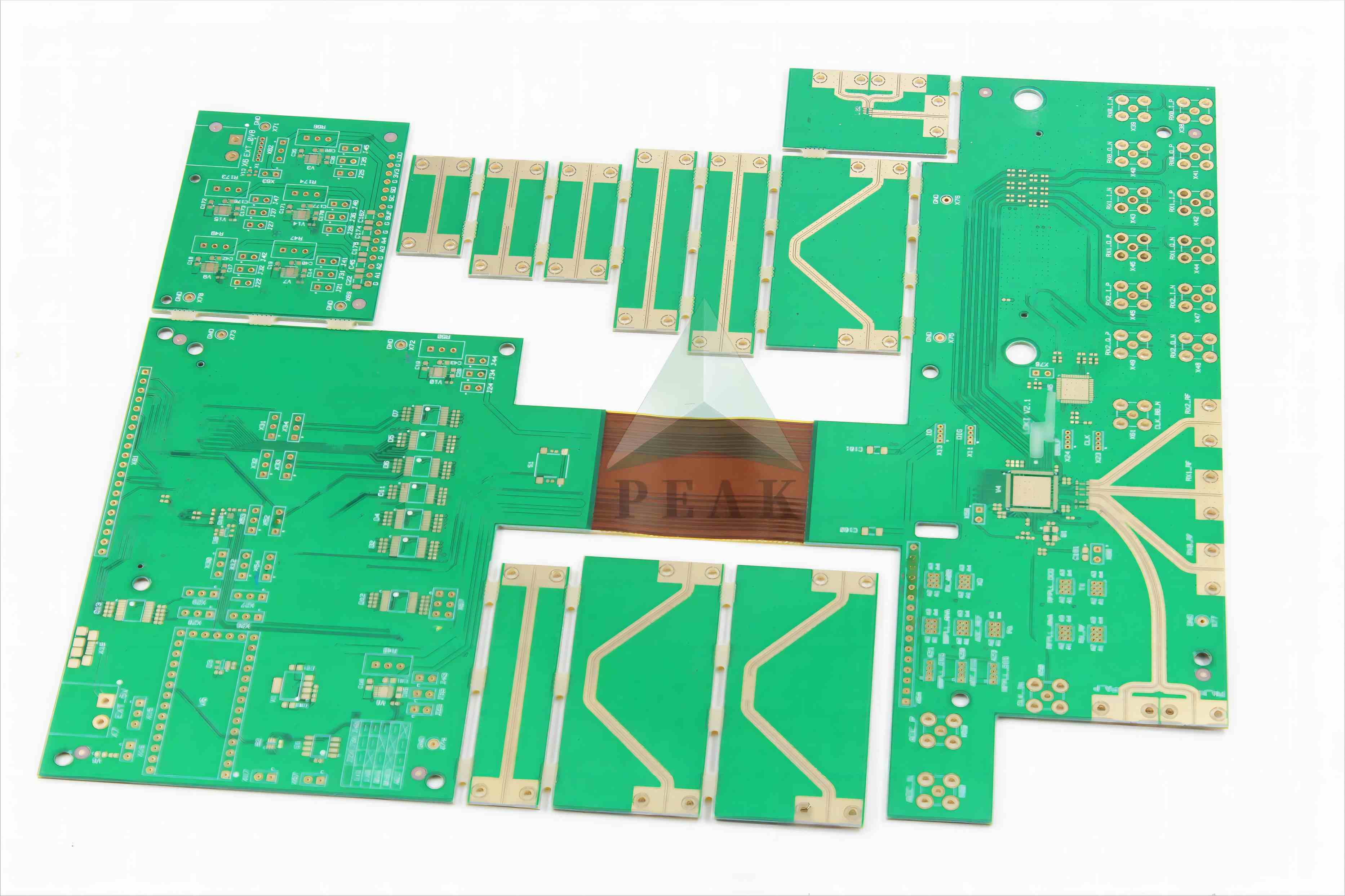

Rigid-Flex PCB
2-24 Layers Book/Air-gap/Fly-tail Unsymmetrical/Semi-Flex Width of Flexible Zone 3mm(min) Dimension Accuracy ±0.05mm(min)
Address:
Phone:8613713911417
Website: https://www.pcbapeak.com/
Metal Core PCB
Thermal Conductivity 1-398W/m.K Aluminum/Copper AC 500-4000V Post-bonding/Pre-bonding Sweat-Soldering/Conductive Adhesive Press-Fit/Embedded Coin(I, T U)
