Ceramic Capacitors - Hi-K TYPE (CLASS II)

The capacitors have variety of high K (dielectric constant) ceramic formulations. They are suitable to be used in circuit application of ��bypass�� and ��coupling�� where a large amount of capacitance is required and the capacitance change versus temperature is less sensitive. Specification: 1. Operation Temperature Range: Y5E, Y5P: - 30�J + 85�J Z5U, Z5V: + 10�J + 85�J 2. Rated Working Voltage (DC): 50V, 63V, 100V 3. Capacitance: Measured at 25�J, 1KHz, 1V rms. max. 4. Capacitance Tolerance: ��10% (K), ��20% (M), + 50% - 10% (R), + 80% - 20% (Z) 5. Insulation Resistance: 10,000M�[ min. at working voltage, 60 sec. 6. Dissipation Factor (D.F.): Measured at 25�J, 1KHz, 1V rms. max. Y5E, Y5P, Z5U: 2.5% max. Z5V: 5.0% max. 7. Voltage Proof (Flash Test):Withstand 250% of rated working voltage with 50mA current, 1.5 sec. 8. Life Test: 200% of rated voltage at 85�J for 500 hours. 9. Applicable Standards: EIA RS-198 (CLASS II), JIS C-6422 (TYPE II)

Address: 6f-4, No.77, Sec.2 , Keelung Road
Taipei city Taiwan Taiwan

Phone:886-2-27382233

Website: https://www.eindiabusiness.com/company/346890/cosonic-enterprise-corporation.html

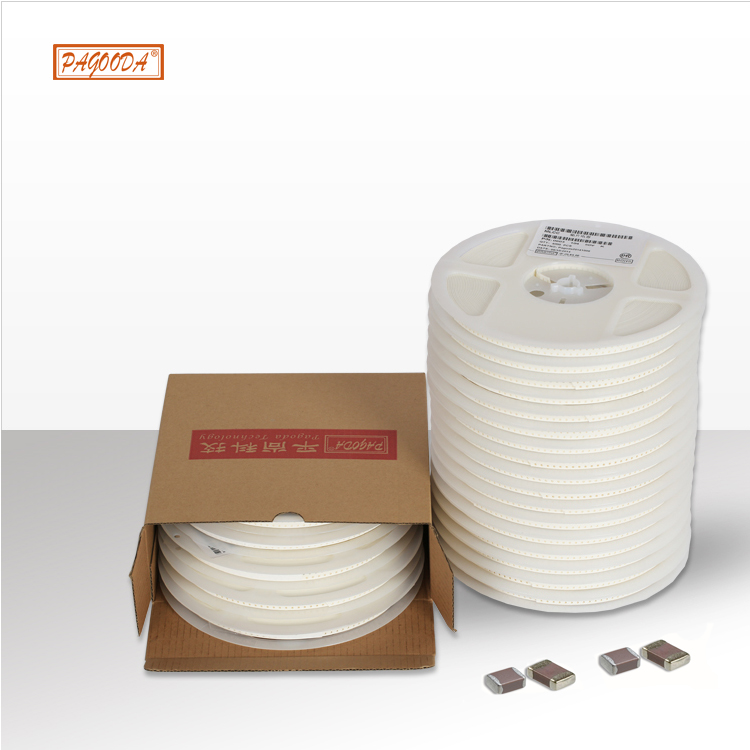

SMD high capacity high voltage capacitor 630V

Dongguan Pingshang Electronic Technology Co., Ltd.

PAGOODA Introduction： What the market saysHigh voltage chip capacitorsAnd ordinaryChip capacitorsThere is no clear definition. Generally speaking, withstand voltage exceeding 50V can be regarded as a high-voltage chip capacitor. SMD capacitor manufacturer Pingshang Technology focuses on high-quality products, especially good at producing high-capacity, high-voltage chip capacitors, and Pingshang is better at serving mid-to-high-end products! Picture of our high-voltage chip capacitors: Chip capacitors The main parameters of our products are: ★ There are 6 kinds of conventional withstand voltage specifications: 250V, 500V, 630V, 1000V, 2000V, 3000V ★ The normal capacitance value range is 1pF～100nF, the higher the withstand voltage, the lower the capacitance value that can be achieved, so individual capacitance values cannot be achieved ★ Generally use NPO or X7R these two materials ★ High-voltage chip capacitor packages are relatively large, and the supplied package specifications are 0805, 1206, 1210, 1812, and 1825. Our chip capacitor products are mainly used in: 1. Power Products 2.Lighting equipment 3. vehicle electronics 4. Medical equipment 5. Intelligent products 6. Network communication equipment 7. Instrumentation 8. Many fields such as automation equipment The core advantages of our supply of high-voltage chip capacitors: 1.I have good reliability, suitable for high-end products 2.High voltage resistance, good breakdown resistance 3.Good temperature characteristics and strong stability

Address: No. 14, Chuangye 1st Road, Helu Village, Baoshan Community, Huangjiang Town, Dongguan City, Guangdong Province, China
Dongguan Duangdong China 523750

Phone:0769-82308

Website: https://www.eindiabusiness.com/company/398281/dongguan-pingshang-electronic-technology-co-ltd.html

Dongguan manufacturers make chip capacitor smart products with peace of mind

PAGOODA TECHNOLO

Chip capacitor series: 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225 SMD capacitor capacity: 0.2p~100uF 10V~5000V SMD capacitance deviation: B=±0.1pF, C=±0.25pF, D=±0.5pF, F=±1% G=±2% , J=±5%, K=±10%, M=±20 % Z=-20%to+80% SMD capacitor packaging: 0402: 10000/disk 0603 4000/disk 0805 1206 1044000/disk 2000/disk above 105 SMD capacitor features: 1. The product has high dimensional accuracy, which is convenient for high-efficiency assembly of automatic placement machines; 2. The terminal electrode is a three-layer electrode, suitable for wave soldering and reflow soldering; 3. The dielectric body and the exterior are made of the same material, with little influence from environmental conditions, high insulation resistance, and high reliability; 4. Contains various temperature characteristic media from COG to Y5V, suitable for common electronic equipment such as communications, computers, household appliances and instruments. SMD capacitor use: This product is suitable for: lighting, lighting, industrial control boards, car players, mobile communications, personal computers, automotive electronics, motherboards, monitors and flat-panel TVs, home DVD and mobile DVD, digital receiving equipment, computer peripherals ( mouse, keyboard) and other electronic equipment and various instruments and meters. If you need to know more, you can click the following link: https://www.electronic7.com/ Interested friends are welcome to consult online

Address: Huangjiang Chuangye 1st Road, Dongguan, Guangdong, China, Dongguan Dongkeng Tea Pavilion
东莞粤 China 523445

Phone:8566176467

Website: https://www.eindiabusiness.com/company/409630/pagooda-technolo.html

Introduction of PAGOODA solid electrolytic capacitors

PAGOODA TECHNOLO

Solid Electrolytic Capacitors Introduction of PAGOODA solid electrolytic capacitors: Operating temperature range: -55~+105℃ for 2000 hours. Rated voltage range: 10V~100VDC. Nominal capacitance range: 18μF~2700uF Suitable for motherboard, VGA, DC/DC converter, switching power supply, QC protocol mobile phone charger, PD protocol charger. Meet RoHS requirements. Solid electrolytic capacitors can make larger capacity with smaller volume, Higher stability, longer life, lower ESR and high rated ripple current. Solid electrolytic capacitors can continue to work stably in high temperature environments, and the use of solid aluminum electrolytic capacitors can directly improve the performance of the motherboard. At the same time, due to its stable impedance in a wide temperature range, it is suitable for power supply filtering. It can effectively provide stable and abundant power, which is especially important in overclocking.
